SCHILDHORNSTRASSE, Berlin

The Site

The Schildhornstrasse is a four-lane road with a traffic intensity of ca. 45,000 veh/day and serves as an access route to the city motorway. The street is 26 m wide. The height of the buildings on the north-easterly side is 19 m, while on the south-westerly side the buildings are 22 m high. Street orientation is 120 degree with respect to North. The pavements are approximately 4 m wide. There are parking lanes on both sides.

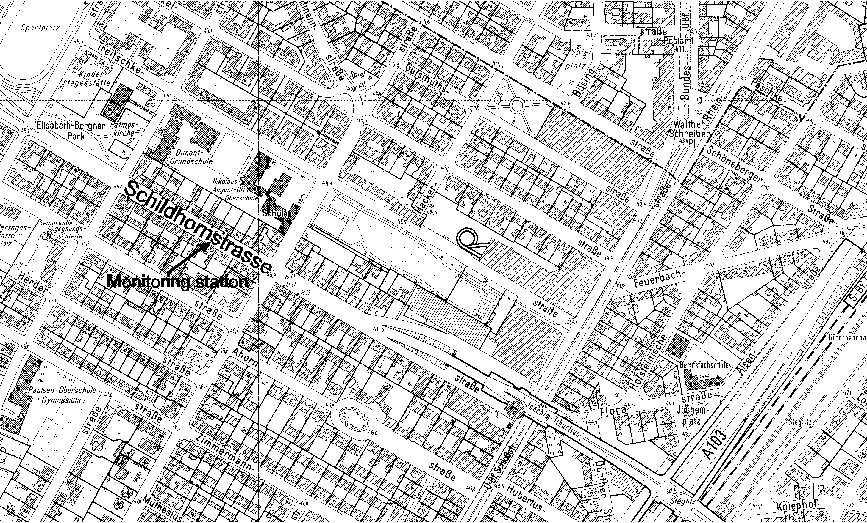

View the map of the site

The Measurements

A permanent air quality monitoring station (Berliner LUftgüte MEssnetz BLUME) is located in Schildhornstrasse on the south-westerly side of the street, approximately in the middle between Paulsenstrasse and Lepsiusstrasse.

In the period December 1994 - March 1995 an additional measurement programme was carried out in the Schildhornstrasse during which pollution measurements were also carried out at the other side of the street. During the same period hourly traffic counts were also performed.

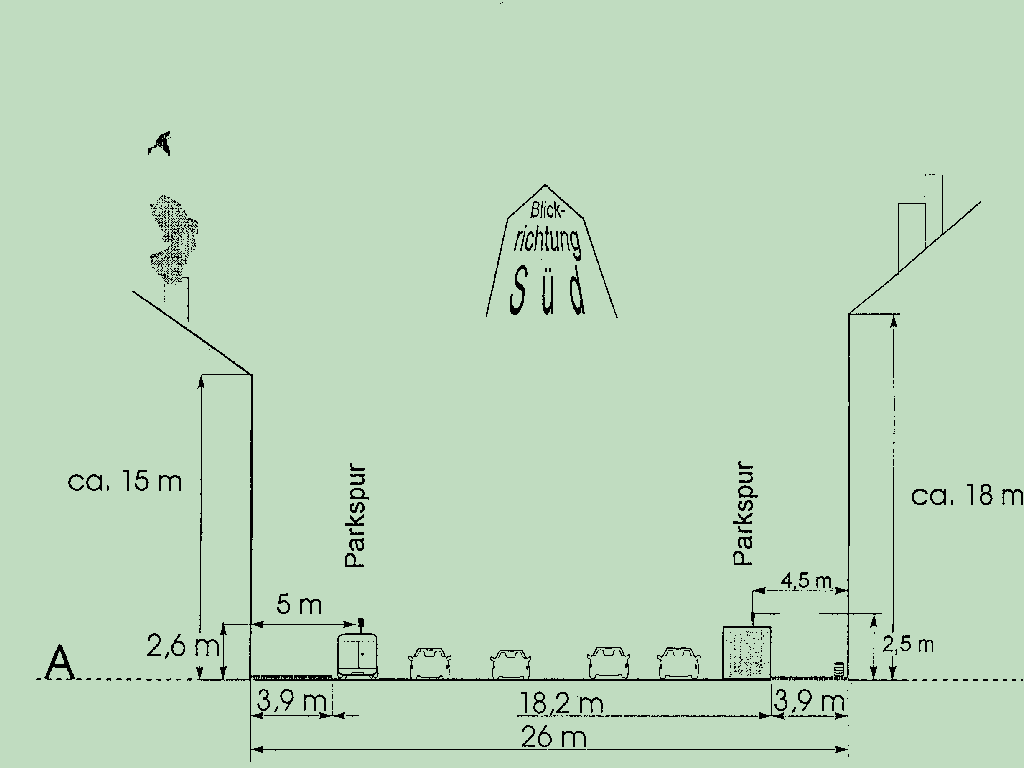

View the sketch of the street measuring location

The air quality measurements covered NOx, NO2, CO, benzene, toluene and soot. The hourly measurements of benzene and toluene were however first initiated in July 1995.

Urban background measurements are available from a monitoring site located about 1.5 km from Schildhornstrasse. The urban background data covered NOx, NO2 and CO. Ozone data were not available from a site nearby Schildhornstrasse but instead measurements from three suburban stations were used. Meteorological data were registered by a nearby meteorological measuring station 10 m above the rooftop level of surrounding buildings. List of the locations from which the data are collected for this study is shown in Table 1.

Table 1. List of the measuring stations and the available data.

Name Type x-coordinate (m) y-coordinate (m) Measurements
Schildhornstrasse Street 19125 15200 NOx, NO2, CO, benzene
Lentzealle background 17450 16000 NOx, NO2, CO
Marienfelde background 22600 7950 O3
Fredrichshagen background 41000 13300 O3
Buch background 30800 34900 O3
Schöneberg meteorology 21150 16700 meteorology

Contact Address

For more information on the BLUME Monitoring network contact:


Senatsverwaltung für Stadtentwicklung
Brückenstraße 6
D 10179 Berlin
Peter Lenschow
blume.berlin@t-online.de
Tel.: +49 30 9025 2393


Data

Following data (Table 2.) are available for download. See Introduction for conditions of using the data.

Table 2. Files available for download.

File Name Description Size (unzipped)
SCHILD95.dat Contains all available concentration measurements and the meteorological data. 2.02 MB
SCHILD95.doc Documentation of the SCHILD95.dat file. 24.0 kb
Schild95.trf Average diurnal traffic data in Schildhornstrasse. Data are constructed on basis of the available hourly traffic counts. 2.7 kb
TrafSch.doc Documentation of the Schild95.trf file. 20.0 kb

DOWNLOAD ALL THE DATA


Schild95.zip (258 kb)
